Library Packs

Library packs are modular bundles of threat-modeling content that you import into your Precogly organization. They provide a structured starting point so your team doesn't have to build threat models from scratch.

What's in a library pack?

A pack can contain any combination of:

• Components — technology building blocks (e.g., Amazon S3, API Gateway, PostgreSQL)
• Threats — what can go wrong for each component (e.g., S3 Bucket Public Exposure)
• Countermeasures — security controls that mitigate threats (e.g., S3 Block Public Access)
• Taxonomy mappings — links from threats to STRIDE, MITRE ATT&CK, CAPEC, CWE
• Compliance mappings — links from countermeasures to standards like NIST CSF, ASVS, SOC 2, PCI-DSS
• Cross-framework requirement mappings — links between requirements in different standards (e.g., IEC 81001 to FDA Premarket)
• DFD templates — pre-built Data Flow Diagrams with components already wired up
• Worksheets — canvas templates for facilitating threat modeling sessions (e.g., STRIDE per Interaction grids)

When you add a component from a library pack to your threat model, its associated threats and countermeasures come with it — along with all taxonomy and compliance links.

Pack types

Type	Contains	Example
technology	Components only	aws, azure, gcp
full	Components + threats + countermeasures + joins + templates	aws
compliance	Framework definitions with requirements	nist-csf, pci-dss
taxonomy	External threat classification taxonomies	stride-taxonomy, capec
template	DFD templates or worksheets only	stride-worksheets

YAML structure

Every pack is a directory under libraries/packs/, organized by category (taxonomies/, standards/, threat-libraries/, worksheets/). Only pack.yaml is required — other files depend on the pack type.

threat-libraries/aws/
├── pack.yaml                    # Pack metadata (required)
├── components.yaml              # Component definitions
├── threats.yaml                 # Threat definitions
├── countermeasures.yaml         # Countermeasure definitions
├── joins/
│   ├── components-threats.yaml         # Which threats apply to which components
│   ├── threats-countermeasures.yaml    # Which countermeasures mitigate which threats
│   ├── threats-stride.yaml            # Threat → STRIDE mappings
│   ├── threats-cwe.yaml               # Threat → CWE mappings
│   ├── threats-capec.yaml             # Threat → CAPEC mappings
│   ├── countermeasures-nist-csf.yaml  # Countermeasure → NIST CSF mappings
│   ├── countermeasures-soc2.yaml      # Countermeasure → SOC 2 mappings
│   └── requirements-fda-premarket.yaml # Cross-framework requirement mapping
└── dfd-templates/
    └── s3-lambda.yaml           # Pre-built DFD template

pack.yaml

pack:
  schema_version: 1
  slug: aws
  name: AWS
  version: 1.1.0
  pack_type: full
  description: |
    AWS pack covering core infrastructure and AI/ML services
    with associated threats and countermeasures.
  author: Precogly
  depends_on:
    - taxonomies/stride-taxonomy
    - taxonomies/capec
    - taxonomies/cwe
    - taxonomies/mitre-attack
  tags:
    - aws
    - cloud
    - technology
    - saas

schema_version declares which version of the pack format this pack uses. The app checks this at import time and rejects packs with an unsupported version. This is separate from version, which tracks changes to the pack's content.

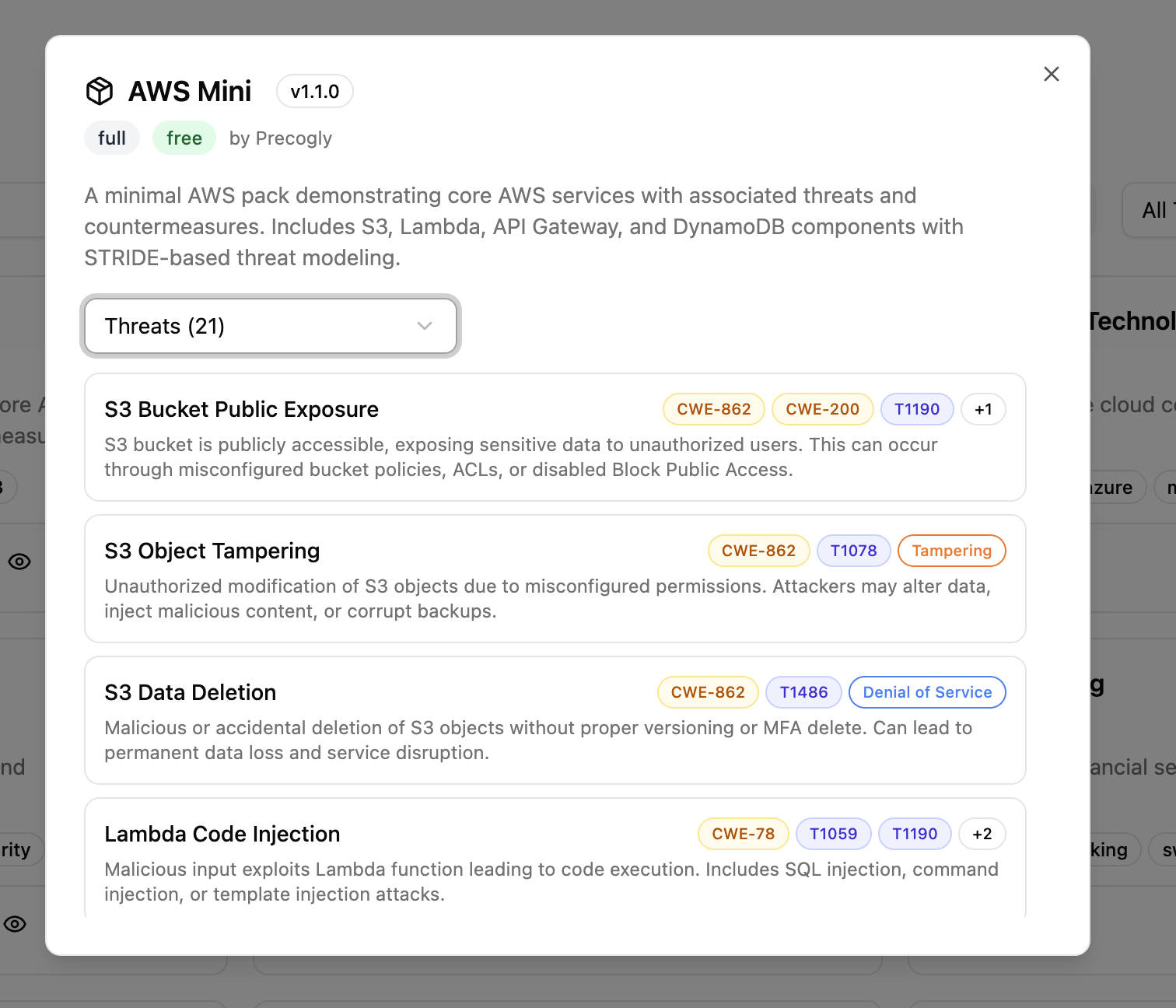

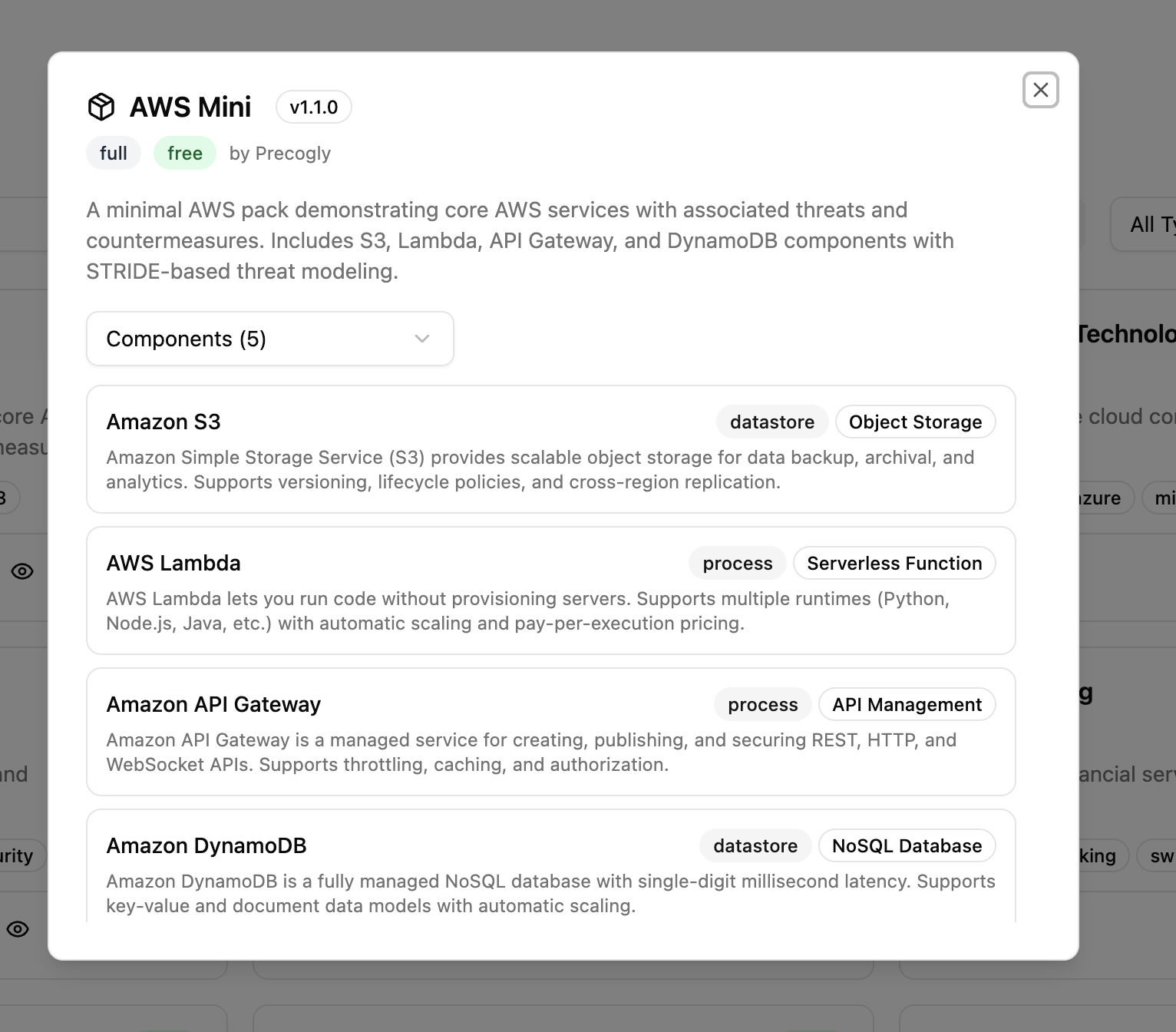

Here's how the YAML maps to what you see in the UI when previewing a pack:

components.yaml

components:
  - id: s3
    name: Amazon S3
    category: datastore # process | datastore | external_human_actor | external_system_actor
    kind: data-store    # optional: the CycloneDX asset type, such as device, service, api or gateway
    type: Object Storage
    provider: aws
    description: |
      Amazon Simple Storage Service for scalable object storage.

threats.yaml

threats:
  - id: s3-public-exposure
    name: S3 Bucket Public Exposure
    description: |
      S3 bucket is publicly accessible, exposing sensitive data.

countermeasures.yaml

countermeasures:
  - id: s3-block-public-access
    name: S3 Block Public Access
    description: |
      Enable S3 Block Public Access at account and bucket level.
    control_functions:        # list: preventive | detective | corrective | deterrent | recovery | compensating
      - preventive
    control_nature: technical # technical | administrative | physical
    cost: low                 # low | medium | high

Join files

kind is optional. When you leave it out, it comes from the category: process gives process, datastore gives data-store, and the two actor categories give actor. Set it when the default is too vague, for example device for a field sensor or gateway for an API gateway. A value outside the CycloneDX asset type list is a validation error.

Join files in the joins/ directory define relationships between items.

components-threats.yaml — which threats apply to which components:

mappings:
  - component: s3
    threats:
      - threat: s3-public-exposure
        applies_to: component # component | flow | both
      - threat: s3-traffic-interception
        applies_to: flow
        flow_types: [data, message] # optional: list of flow types, or any
        severity: high              # optional: info | low | medium | high | critical

For flow and both links, flow_types says which kinds of flow the threat reaches. A link that says nothing applies to data-like flows only (data, message and event), never to signal, energy, physical, control, process or financial flows. Use any to reach every flow type. flow_types is not allowed on a link with applies_to: component. severity is the level a generated threat starts with and defaults to medium.

threats-countermeasures.yaml — which countermeasures mitigate which threats:

mappings:
  - threat: s3-public-exposure
    countermeasures:
      - s3-block-public-access
      - s3-bucket-policy

threats-{taxonomy}.yaml — maps threats to taxonomy entries:

taxonomy: stride

mappings:
  - threat: s3-public-exposure
    entries: [information-disclosure]

countermeasures-{framework}.yaml — maps countermeasures to compliance requirements:

framework: nist-csf-2

mappings:
  - countermeasure: s3-bucket-policy
    requirements:
      - "PR.AC-4"
    sufficiency: full # full | partial

requirements-{framework}.yaml — maps requirements between two compliance frameworks:

framework: fda-premarket-2023
source_framework: iec-81001-2021

mappings:
  - requirement: "5.3"
    entries:
      - "FDA-PM-1"
    sufficiency: full # full | partial

These cross-framework mappings appear in the Cross-Framework Mappings section of the Compliance report. See the Compliance Mapping guide for details.

DFD templates

Templates in dfd-templates/ describe a diagram as nodes and edges. These keys carry the type information:

nodes:
  - id: tb-site
    type: trustZone
    data:
      label: Plant Network
      zoneType: network # a CycloneDX zone type, default trust
      trustLevel: 40    # optional, integer from 0 to 100
  - id: process-plc
    type: process
    data:
      label: PLC
      kind: device      # optional, a CycloneDX asset type
edges:
  - id: edge-1
    source: process-plc
    target: process-valve
    type: dataFlow
    data:
      label: Valve command
      flowType: control            # default data
      authentication: [certificate] # a list of methods

• zoneType is a CycloneDX zone type such as trust, network, physical or logical. Use network for segments such as a DMZ, a VPC or a Purdue level.
• flowType is one of control, data, energy, event, financial, message, physical, process or signal.
• authentication is always a list. An empty list or no key means not recorded.

Two older keys are retired and now fail validation: the boolean authenticated on edges (use authentication), and the old zone values zoneInternet, zoneDmz, zoneInternal, zoneRestricted and zoneExternal (use trust or network, and set trustLevel). The pack format version stays 1. See libraries/README.md for the full field reference.

How to import a library pack

Import requires Security Team role

The Import button is only visible to users with the Security Team organization role. If you don't see the Import button, ask your organization admin to update your role from Member to Security Team in the organization settings.

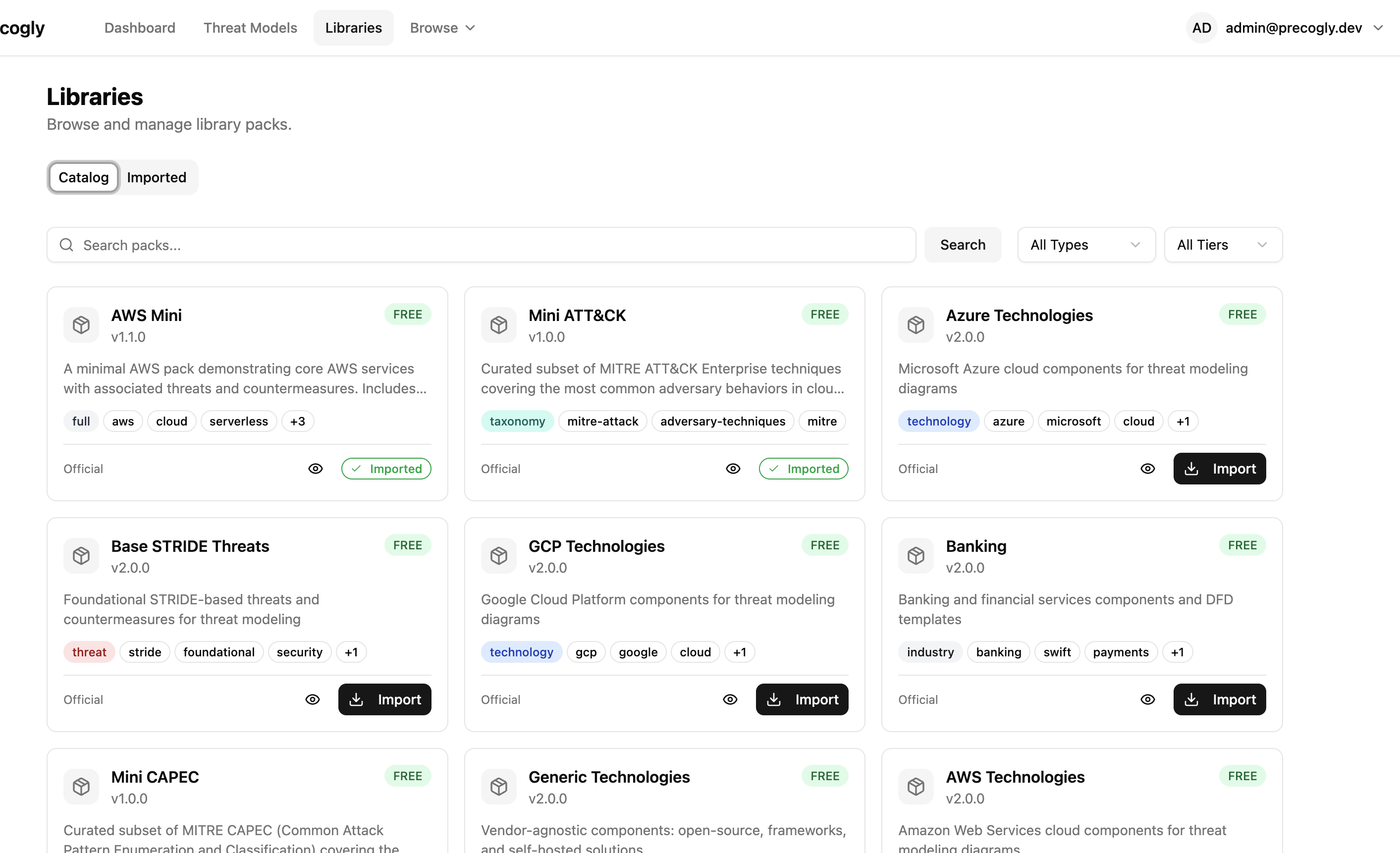

1. Navigate to the Library Packs section from the sidebar
2. Browse available packs — you can filter by type, tag, or search by name

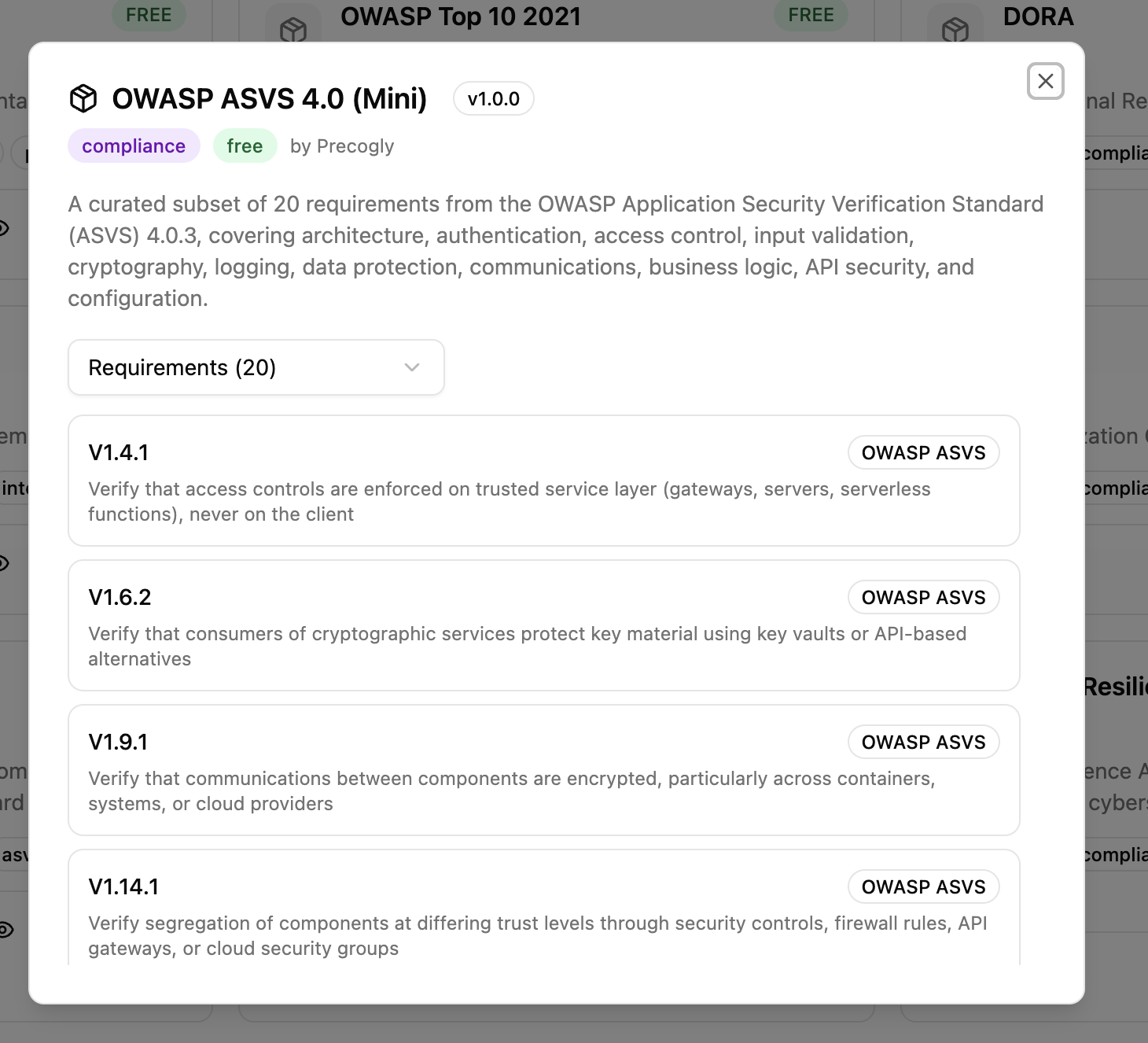

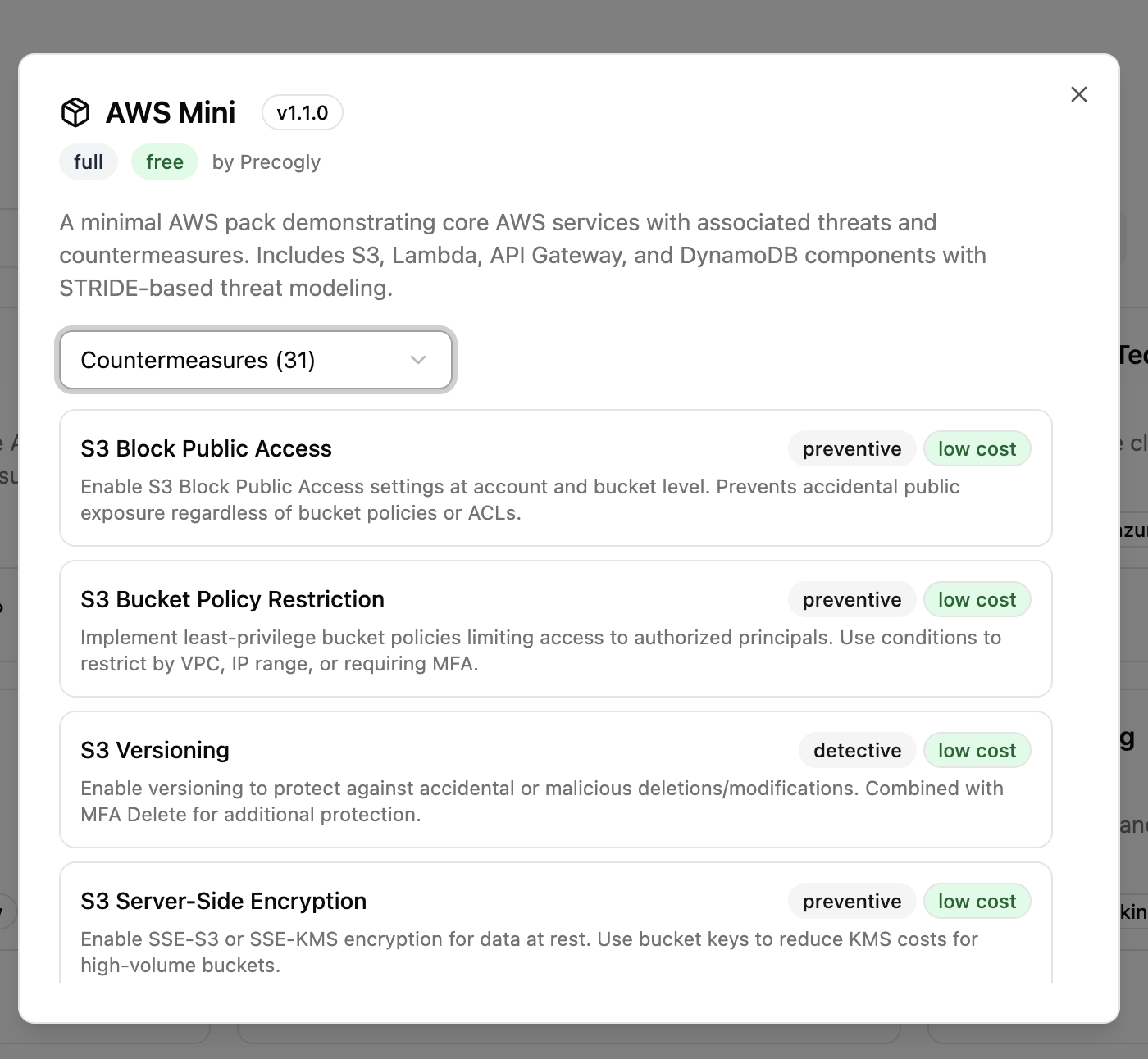

3. Click on a pack to preview its components, threats, and countermeasures
4. Click Import to add it to your organization

Packs with dependencies (e.g., aws depends on stride-taxonomy, capec, etc.) will show which dependencies need to be imported. Dependencies are not enforced — you can import a pack without its taxonomy dependencies if you don't need taxonomy enrichment (STRIDE, CAPEC, CWE tags on threats). Import taxonomy packs first if you want full taxonomy linking.

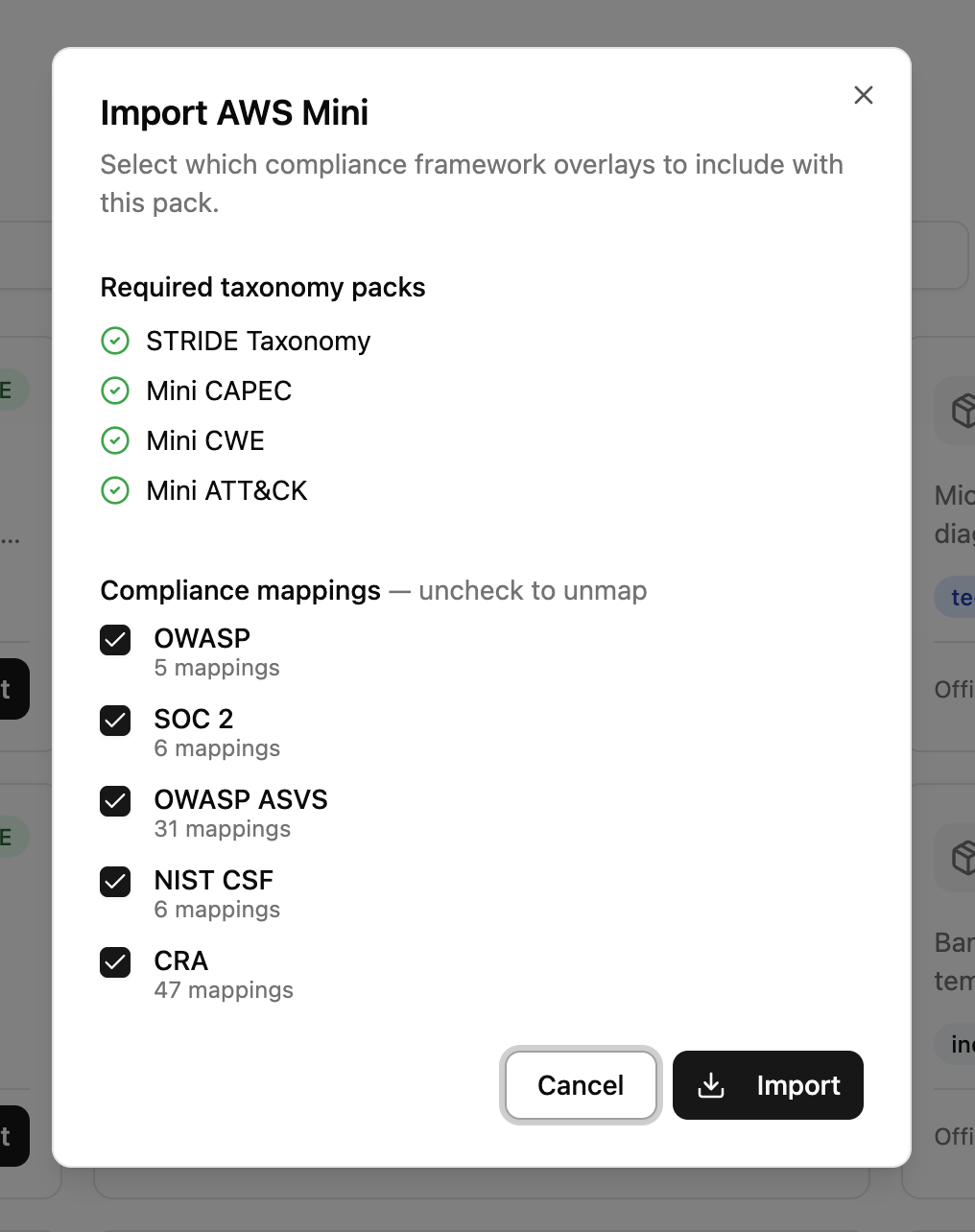

Compliance overlay selection

When importing a pack, you can choose which compliance framework mappings to include. For example, import only NIST CSF mappings without SOC 2 if that's all you need. You will get warnings if packs that are depended upon by the importing pack have not yet been imported.

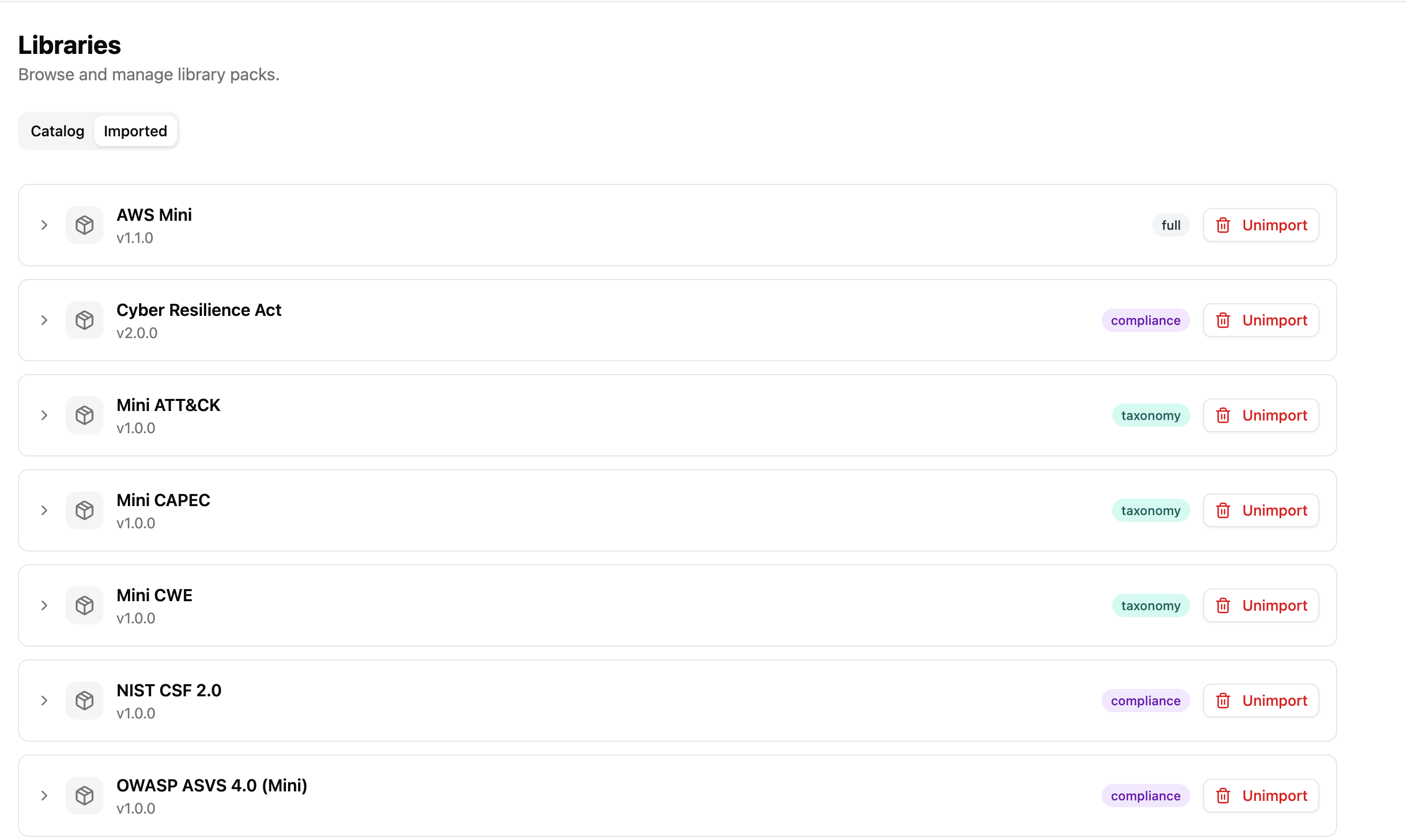

How to unimport a library pack

1. Navigate to the Library Packs section
2. Switch to the Imported tab
3. Find the pack and click Unimport

Unimporting removes the library definitions (components, threats, countermeasures) but does not delete any threat model data you've already created using that pack. Your existing threat models keep their data — they just lose the link back to the library definition.

Warning

You cannot unimport a pack if other imported packs depend on it. Unimport the dependent packs first.

Taxonomy packs vs. compliance packs: Taxonomy packs (STRIDE, CAPEC, CWE, etc.) cannot be unimported while content packs that reference them are still imported — taxonomies directly enrich threat data. Compliance packs (NIST CSF, ASVS, etc.) can be unimported independently since compliance mappings are optional and degrade gracefully.

How to author a library pack

Creating your own pack involves writing YAML files following the structure above. For the complete authoring guide with field references, validation checklists, DFD template syntax, and cross-pack references, see:

libraries/README.md

Troubleshooting

Imported a pack but taxonomy tags are missing on threats : Taxonomy packs (STRIDE, CWE, CAPEC, etc.) must be imported before the content pack that references them. If you imported without taxonomy dependencies, the components, threats, and countermeasures are fine — but taxonomy links (e.g., STRIDE categories on threats) won't be present. To fix this, unimport the pack, import the taxonomy packs, then re-import.

Taxonomy mappings not showing up : Same as above — taxonomy packs must be imported first. The seed data imports taxonomies first for this reason.

Compliance mappings not appearing : If the compliance framework pack (e.g., nist-csf) wasn't imported when the content pack was imported, the mappings are stored as pending. Import the framework pack and the mappings will activate automatically.

Cross-framework mappings not showing in the report : Both the source and target framework packs must be imported, and both frameworks must appear in the threat model's compliance data (through countermeasure mappings). See the Compliance Mapping guide for details.

Unimport blocked : Another pack depends on the one you're trying to remove. Check which packs list it in their depends_on and unimport those first. Note that taxonomy packs are protected this way because they enrich threat data, while compliance packs can be unimported freely since their mappings are optional.
