IEC 62443: Industrial Automation and Control Systems Security

Commonly used in: Energy, Manufacturing, Utilities, Oil & Gas, Chemicals, Building Automation, Water/Wastewater

This recipe shows how to implement IEC 62443 threat modeling in Precogly, including the SL-T (Target Security Level) vs SL-A (Achieved Security Level) gap analysis. It uses a simplified Remote Operations Center as a worked example.

What IEC 62443 requires

IEC 62443 is a series of standards for securing Industrial Automation and Control Systems (IACS). The parts most relevant to threat modeling are:

  • Part 3-2: Security risk assessment and system design. Defines zones, conduits, and the process for assigning target security levels.
  • Part 3-3: System security requirements and security levels. Defines the Foundational Requirements (FRs), System Requirements (SRs), and Requirement Enhancements (REs).
  • Part 4-2: Technical security requirements for IACS components.

The standard defines four Security Levels:

Level Intent
SL-1 Protection against casual or coincidental violation
SL-2 Protection against intentional violation using simple means
SL-3 Protection against intentional violation using sophisticated means
SL-4 Protection against intentional violation using sophisticated means with extended resources

Each level requires progressively more System Requirements (SRs) and Requirement Enhancements (REs) across seven Foundational Requirements:

FR Name
FR 1 Identification and Authentication Control
FR 2 Use Control
FR 3 System Integrity
FR 4 Data Confidentiality
FR 5 Restricted Data Flow
FR 6 Timely Response to Events
FR 7 Resource Availability

The requirements are additive: SL-2 includes everything in SL-1 plus additional SRs and REs. For example, SL-1 may require basic identification and authentication (SR 1.1), while SL-2 adds unique identification (SR 1.1 RE 1) and authenticator management (SR 1.5). SL-2 also introduces entirely new requirement areas such as continuous monitoring (SR 6.2) and control system component inventory for rogue asset detection (SR 7.8).

How it maps to Precogly

IEC 62443 concepts map to Precogly features without any platform customization:

IEC 62443 Concept Precogly Feature
Zones and conduits Trust zones in the DFD editor
Components (PLCs, RTUs, HMIs) Component library entries
Threats to control systems Threat library with MITRE ATT&CK for ICS mappings
Security countermeasures Countermeasure library with status tracking
Security Levels (SL-1 through SL-4) Separate compliance frameworks per level
SL-T (Target) Which level frameworks appear from countermeasure mappings
SL-A (Achieved) Which level's requirements are fully satisfied
Gap (SL-T vs. SL-A) Compliance report showing unsatisfied requirements

Which packs to import

Import these packs in order (dependencies first):

Pack Type Purpose
stride-taxonomy taxonomy STRIDE threat classification
mini-cwe taxonomy CWE weakness enumeration
mitre-attack-ics taxonomy MITRE ATT&CK for ICS techniques
iec-62443 compliance IEC 62443 framework requirements, split by security level
ot-ics full OT/ICS components, threats, countermeasures, and DFD templates

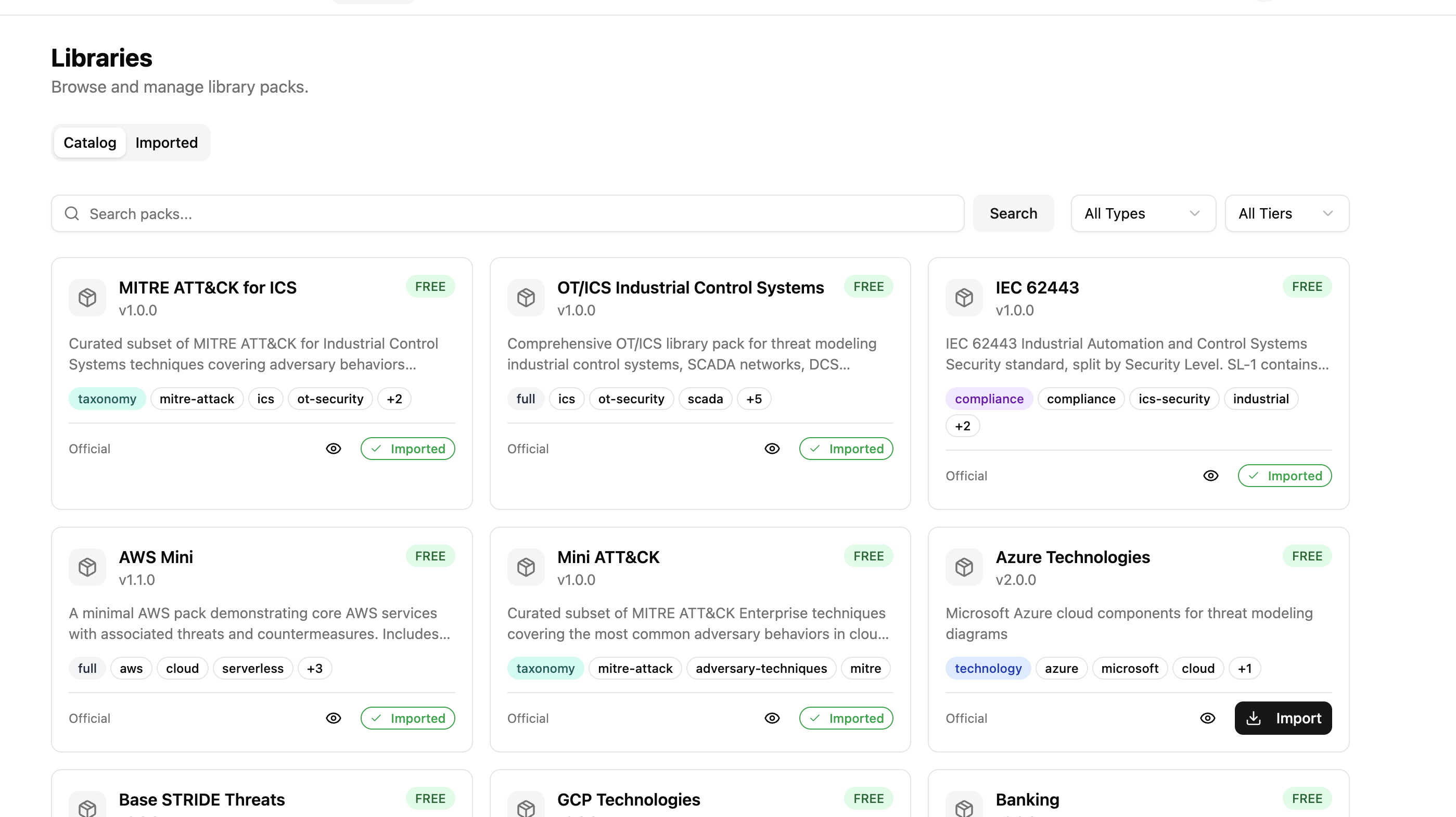

Library packs imported for IEC 62443

Tip

If your environment also includes cloud or IT infrastructure, import additional packs (e.g., aws-mini, azure) alongside the OT/ICS pack. Precogly supports mixing packs within a single threat model.

Structuring the IEC 62443 compliance pack

The key to handling SL-T vs. SL-A in Precogly is structuring the IEC 62443 compliance pack with one framework per security level. Each framework contains only the additional SRs and REs required at that level.

# iec-62443/pack.yaml
pack:
  slug: iec-62443
  name: "IEC 62443"
  version: "1.0.0"
  pack_type: compliance
  description: "IEC 62443 IACS Security, split by Security Level"

frameworks:
  - slug: iec-62443-sl1
    name: "IEC 62443 SL-1"
    version: "4.2"
    issuer: "IEC"
    description: "Base security requirements (SL-1)"
    requirements:
      - section_code: "SR 1.1"
        description: "Human user identification and authentication"
      - section_code: "SR 2.1"
        description: "Authorization enforcement"
      # ... all base SRs required at SL-1

  - slug: iec-62443-sl2
    name: "IEC 62443 SL-2"
    version: "4.2"
    issuer: "IEC"
    description: "Additional requirements for Security Level 2"
    requirements:
      - section_code: "SR 1.1 RE 1"
        description: "Unique identification and authentication"
      - section_code: "SR 1.5"
        description: "Authenticator management"
      # ... only the ADDITIONAL SRs/REs for SL-2

  - slug: iec-62443-sl3
    name: "IEC 62443 SL-3"
    version: "4.2"
    issuer: "IEC"
    description: "Additional requirements for Security Level 3"
    requirements:
      - section_code: "SR 1.1 RE 2"
        description: "Multifactor authentication for untrusted networks"
      - section_code: "SR 1.9"
        description: "Strength of public key authentication"
      # ... only the ADDITIONAL SRs/REs for SL-3

  - slug: iec-62443-sl4
    name: "IEC 62443 SL-4"
    version: "4.2"
    issuer: "IEC"
    description: "Additional requirements for Security Level 4"
    requirements:
      # ... only the ADDITIONAL SRs/REs for SL-4

The OT/ICS pack then provides separate compliance overlay files per level:

ot-ics/
└── joins/
    ├── countermeasures-iec-62443-sl1.yaml
    ├── countermeasures-iec-62443-sl2.yaml
    └── countermeasures-iec-62443-sl3.yaml

Each overlay maps countermeasures to the requirements at that specific level.

This additive overlay structure mirrors how IEC 62443 itself works. A countermeasure like "role-based access control" satisfies SR 2.1 (Authorization enforcement) at SL-1. At SL-2, the same countermeasure may also need to satisfy SR 2.1 RE 1 (Authorization enforcement for all users), mapped in a separate overlay file. The countermeasure exists once in the model. The overlays determine which level's requirements it covers.

Worked example: Remote Operations Center

The following walkthrough uses a simplified Remote Operations Center (ROC) that monitors two distributed energy sites. This is one of the pre-built DFD templates in the OT/ICS pack. The goal is to achieve SL-2 compliance (protection against intentional violation using simple means).

1. Create the threat model

Create a new threat model called "Remote Operations Center". Set criticality to Critical (compromising remote pipeline and compressor controls has direct safety consequences).

2. Define the system context

System description:

Centralized remote operations center providing SCADA-based supervisory control over two distributed energy sites: a pipeline station (Site A) and a compressor station (Site B). The ROC connects to remote sites via encrypted WAN/satellite links through an OPC UA broker. A secure remote access zone provides jump server access for field engineers. The system handles pipeline flow control, compressor management, and safety instrumented system (SIS) monitoring across both sites.

Data assets:

Asset Category C I A
Control Commands & Setpoints Business Critical High High High
Safety System Parameters Business Critical High High High
Pipeline Telemetry (pressure, flow, leak detection) Business Critical Medium High High
Compressor Telemetry (vibration, temperature, surge) Business Critical Medium High High
Central Historian Archives Intellectual Property High High Medium
Operator and Engineer Credentials Credentials / Secrets High High High

3. Compliance frameworks (setting SL-T)

Compliance frameworks are not manually linked. They appear automatically once the threat model contains countermeasures that have compliance mappings. After you load the DFD template (next step) and save it, the OT/ICS pack's countermeasures bring their IEC 62443 mappings with them. The frameworks that appear depend on which countermeasure-to-requirement mappings exist in the imported packs.

For this example, the OT/ICS pack includes mappings to both:

  • IEC 62443 SL-1 (base requirements: SR 1.1, SR 2.1, SR 3.1, SR 5.1, SR 7.1, etc.)
  • IEC 62443 SL-2 (additional requirements: SR 1.1 RE 1, SR 1.5, SR 6.2, SR 7.8, etc.)

The set of frameworks that appear IS your SL-T. There is no separate "target level" field because the frameworks define exactly which requirements must be satisfied.

Info

To expand your SL-T to SL-3, import a pack that includes countermeasure mappings to SL-3 requirements. The IEC 62443 SL-3 framework will then appear automatically in your compliance report.

4. Model the architecture

Open the DFD editor and load the Remote Operations Center template from the OT/ICS pack. The template creates:

  • Central Operations (Level 2-3): Central SCADA, Operations HMI, Central Historian
  • WAN / Satellite Link: WAN Firewall, OPC UA Broker
  • Remote Site A (Pipeline Station): Pipeline RTU, Pipeline Sensors, Isolation Valves
  • Remote Site B (Compressor Station): Compressor PLC, Compressor SIS, Compressor Sensors
  • Secure Remote Access Zone: Jump Server for field engineer access

Each component is placed in a trust zone matching the Purdue Model segmentation. Data flows show the communication paths, protocols (DNP3, EtherNet/IP, OPC UA, VPN+MFA), and encryption status.

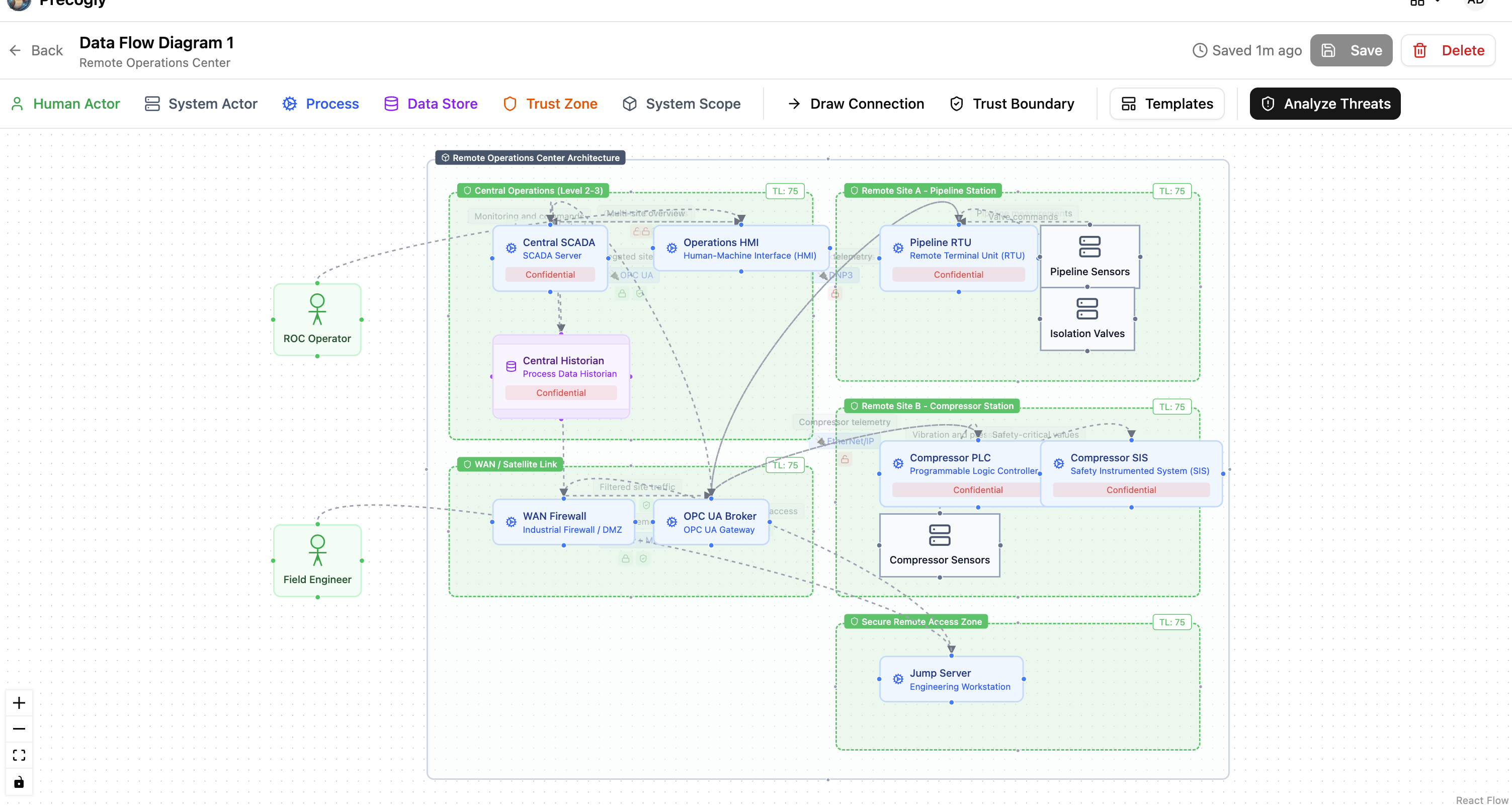

DFD Editor showing the Remote Operations Center diagram

Tip

The trust zone names in the template correspond to IEC 62443 zones and conduits. Rename them to match your organization's zone and conduit diagram if needed (e.g., "Control Network (Level 0-1)", "Industrial DMZ (Level 3.5)").

5. Analyze threats

Navigate to the Threat Analysis tab. Because the template uses library components from the OT/ICS pack, threats are pre-populated with mappings to:

  • STRIDE categories
  • MITRE ATT&CK for ICS techniques (e.g., T0855 Unauthorized Command Message, T0831 Manipulation of Control)
  • CWE weakness enumerations

For the Remote Operations Center, key threats include:

  • Unauthorized SCADA command injection targeting the Central SCADA and OPC UA Broker
  • DNP3 protocol manipulation on the unencrypted RTU links to Site A
  • Rogue device on field network at compressor or pipeline sites
  • Compromised jump server providing lateral movement from the remote access zone

Review each threat, set severity, and dismiss any that don't apply (with documented rationale).

6. Apply countermeasures

For each threat, review suggested countermeasures from the library. Each countermeasure arrives with IEC 62443 compliance mappings already attached across the relevant security levels.

How countermeasures map across levels:

A single countermeasure can satisfy requirements at multiple security levels. For example:

Countermeasure SL-1 Requirement SL-2 Additional Requirement
Role-based access control SR 2.1 (Authorization enforcement) SR 2.1 RE 1 (All users, including automated)
Communication integrity checks SR 3.1 (Communication integrity) SR 3.1 RE 1 (Cryptographic integrity protection)
System component inventory - SR 7.8 (Control system component inventory)
Continuous monitoring - SR 6.2 (Continuous monitoring)

Notice that some countermeasures (like system component inventory) only appear at SL-2 and above. Others (like role-based access control) satisfy base requirements at SL-1 and additional requirement enhancements at SL-2.

Track countermeasure status:

Status Meaning
Gap Not implemented. Contributes to the SL-T/SL-A gap.
Planned Implementation scheduled. Still a gap for SL-A purposes.
Verified Confirmed implemented. Counts toward SL-A.
Platform Infrastructure-level control. Counts toward SL-A.
Waived Risk accepted with justification.

7. Read the compliance report (Coverage vs Satisfaction)

Generate the report to see two compliance metrics for each linked framework:

  • Coverage: the percentage of requirements that have at least one countermeasure mapped to them. This answers "do we have a plan?"
  • Satisfaction: the percentage of requirements where at least one mapped countermeasure has status Verified or Platform. This answers "have we actually done it?"

After loading the template and saving the DFD, coverage should be high (the library provides countermeasure mappings), but satisfaction starts at 0% because all countermeasures default to "Gap" status.

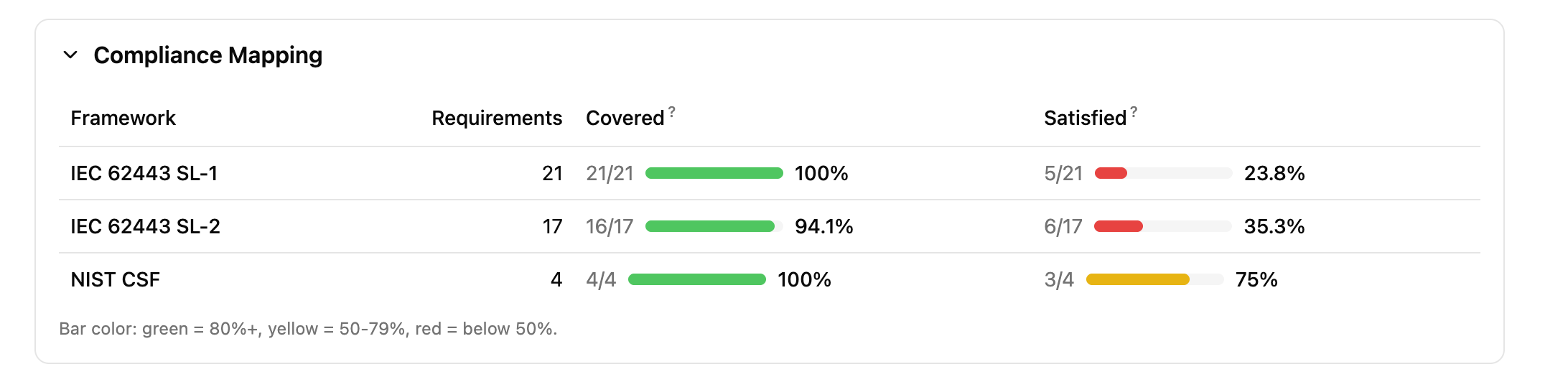

Compliance report showing IEC 62443 SL-1 and SL-2 coverage vs satisfaction

Increasing satisfaction: a step-by-step example

To see the satisfaction metric move, change a few countermeasure statuses to "Verified". Here are three high-impact countermeasures to start with:

Step Component Threat Countermeasure Set status to Requirements satisfied
1 SCADA Server SCADA Unauthorized Access Multi-Factor Authentication for Remote OT Access Verified SR 1.1 (SL-1), SR 1.1 RE 1, SR 1.9, SR 1.13 (SL-2)
2 Central Historian Historian Data Exfiltration Industrial DMZ Verified SR 4.1, SR 5.1, SR 5.2 (SL-1), SR 4.2, SR 5.3 (SL-2)
3 SCADA Server SCADA Command Injection OT Role-Based Access Control Verified SR 1.1, SR 1.3 (SL-1), SR 2.1 RE 1 (SL-2)

After each change, regenerate the report. You should see the satisfaction percentage climb while coverage stays the same.

Tip

For a quick demonstration, set just the first two countermeasures above to "Verified". This satisfies requirements across both SL-1 and SL-2, producing a visible contrast between the green coverage bars and the red/yellow satisfaction bars.

How to determine your achieved security level:

  • If all SL-1 requirements have verified or platform countermeasures: you have achieved SL-1
  • If all SL-1 and SL-2 requirements are satisfied: you have achieved SL-2
  • Any SL-2 requirement still showing gaps means SL-2 is not yet achieved, even if some SL-3 requirements happen to be satisfied

Example gap reading for the ROC:

Suppose after implementing countermeasures:

  • All SL-1 requirements are satisfied (SL-A = SL-1)
  • SL-2 has 3 gaps remaining: SR 6.2 (continuous monitoring not yet deployed), SR 7.8 (no component inventory system), and SR 1.1 RE 1 (unique identification not enforced on RTU links)

Your SL-T is SL-2. Your SL-A is SL-1. The remediation roadmap is those 3 specific countermeasures.

8. Score risks

Navigate to the Risk Analysis tab to aggregate threats into business-level risks. For the ROC, natural risk groupings include:

  • Unauthorized remote control: Threats to SCADA command integrity, OPC UA broker compromise, unauthorized valve/compressor commands
  • Loss of visibility: Threats to historian data integrity, telemetry manipulation, sensor spoofing
  • Safety system bypass: Threats to SIS independence, safety parameter manipulation
  • Lateral movement via remote access: Jump server compromise, field engineer credential theft
Step-by-step: creating these risks

Risk 1: Unauthorized Remote Control

  1. In the Risk Analysis tab, click Add Risk
  2. Name: Unauthorized Remote Control
  3. Description: Unauthorized manipulation of SCADA commands, valve setpoints, or compressor controls via compromised remote access or protocol exploitation.
  4. In the Link Threats section, check:
    • SCADA Unauthorized Access (SCADA Server)
    • SCADA Command Injection (SCADA Server)
    • RTU Protocol Exploitation (Pipeline RTU)
  5. Click Create Risk

Risk 2: Loss of Operational Visibility

  1. Click Add Risk
  2. Name: Loss of Operational Visibility
  3. Description: Compromise of historian data integrity or telemetry feeds, leading to operators making decisions on manipulated or missing data.
  4. In the Link Threats section, check:
    • Historian Data Exfiltration (Central Historian)
    • Any sensor spoofing or telemetry-related threats for Pipeline Sensors or Compressor Sensors
  5. Click Create Risk

Risk 3: Lateral Movement via Remote Access

  1. Click Add Risk
  2. Name: Lateral Movement via Remote Access
  3. Description: Compromise of the jump server or field engineer credentials to pivot from the remote access zone into the control network.
  4. In the Link Threats section, check threats related to the Jump Server component
  5. Click Create Risk

After creating all three, click one of the risk rows to expand its detail panel showing the linked threats.

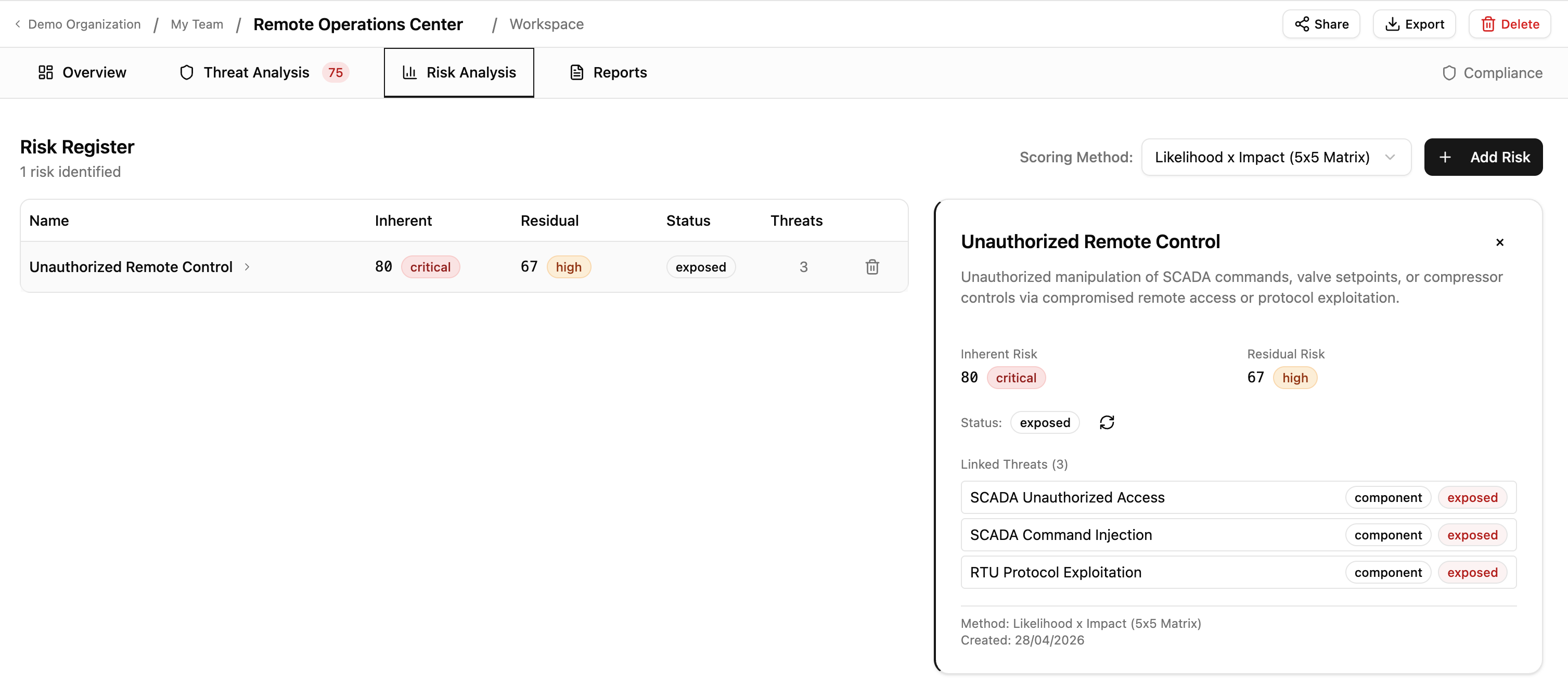

Risk Analysis tab showing aggregated risks

The target security level provides context for inherent risk scoring: threats against zones with higher SL-T targets should be scored with greater severity, reflecting the higher consequences of compromise.

SL-T vs. SL-A summary

Concept How it works in Precogly
SL-T (Target) The set of IEC 62443 level frameworks derived from countermeasure mappings
SL-A (Achieved) The highest level whose requirements are all satisfied (countermeasure status = Verified or Platform)
Gap Requirements in linked frameworks without verified countermeasures
Remediation plan Countermeasures in Gap or Planned status for the target level's requirements

Single model vs duplicate modeling

Tools like IriusRisk implement SL-T/SL-A by duplicating the entire system model: the same component (e.g., an RS-485 serial interface) is placed in separate trust zones for each security level. SL-1 gets one instance with its countermeasures marked "Implemented". SL-2 gets a second instance where some countermeasures are "Implemented" and others are "Required". The gap is determined by diffing the two instances.

This works, but it creates problems at scale:

Factor Duplicate modeling Single model (Precogly)
A system with 20 components targeting SL-3 60 component instances (20 x 3 zones) 20 components, 3 linked frameworks
Adding a new component Must be added to every level zone Add once, compliance mappings follow from library
Changing a countermeasure status Must be updated in each zone's instance Update once, reflected across all levels
Reading the gap Compare countermeasure states across zone pairs Compliance report shows unsatisfied requirements directly
Architecture accuracy DFD does not reflect the real network topology (zones represent security levels, not physical/logical zones) Trust zones represent actual network segmentation (Purdue Model levels, DMZs)

The last point is subtle but important. In a duplicate-modeling approach, trust zones represent security level tiers, not the actual network architecture. A "SL-2 Zone" containing a copy of every component at security level 2 does not correspond to any real zone in the facility's network diagram. In Precogly, trust zones represent the actual zones and conduits from IEC 62443-3-2, and the security level analysis happens through the compliance framework layer.

Why this approach works

The platform remains standards-agnostic. The SL-T/SL-A workflow is achieved entirely through:

  1. Pack structure: one compliance framework per security level
  2. Existing feature: frameworks derived automatically from countermeasure mappings
  3. Existing feature: compliance report showing requirement satisfaction status
  4. Existing feature: countermeasure status tracking (Gap/Planned/Verified/Platform/Waived)

No custom fields, no IEC 62443-specific code, no platform modifications. The same pattern works for any standard with tiered maturity or capability levels (NIST CSF Tiers, CMMC Levels, ASVS Levels).

What's next
