Creating Library Packs

Library packs are modular bundles of threat-modeling content: components, threats, countermeasures, taxonomy mappings, compliance overlays, and DFD templates. They are designed for LLM-assisted authoring with human review. You prompt an LLM to generate the YAML, review the output for accuracy, validate it, and submit.

For background on what library packs are and how they work in the UI, see Library Packs (Concepts). For the complete field-level YAML reference, see libraries/README.md.

The canonical reference pack is aws (libraries/packs/threat-libraries/aws/). This guide walks through its structure and uses it as the model for creating your own.

---

Workflow overview

Creating a library pack follows five steps:

1. Choose pack type  →  2. Prompt an LLM  →  3. Review output  →  4. Validate & test  →  5. Submit

1. Choose a pack type and determine which files you need.
2. Prompt an LLM (Claude, GPT, etc.) to generate the YAML files.
3. Review the output for accuracy, completeness, and consistency.
4. Validate and test by importing the pack locally.
5. Submit a pull request with your pack.

---

Choosing a pack type

Your pack type determines which files you need to create.

Pack type	What it contains	Required files	Optional files
technology	Components only	pack.yaml, components.yaml	dfd-templates/
threat	Threats + countermeasures	pack.yaml, threats.yaml, countermeasures.yaml	joins/threats-countermeasures.yaml, taxonomy joins
full	Everything	pack.yaml, components.yaml, threats.yaml, countermeasures.yaml, joins/	dfd-templates/, compliance overlays
compliance	Framework definitions	pack.yaml with frameworks: block (uses slug, not id)	None
taxonomy	Classification entries	pack.yaml with taxonomies: block (uses slug, not id)	None
template	DFD templates or worksheets only	pack.yaml, dfd-templates/	None

Most community contributions will be technology packs (adding components for a new cloud provider or tool) or full packs (components with threats and countermeasures).

---

The canonical pack: aws

The aws pack is a full pack that demonstrates every file type. Use it as your template.

Directory layout

libraries/packs/threat-libraries/aws/
├── pack.yaml                              # Pack metadata
├── components.yaml                        # 4 components (S3, Lambda, API Gateway, DynamoDB)
├── threats.yaml                           # ~15 threats across all components
├── countermeasures.yaml                   # ~20 countermeasures
├── joins/
│   ├── components-threats.yaml            # Which threats apply to which components
│   ├── threats-countermeasures.yaml       # Which countermeasures mitigate which threats
│   ├── threats-stride.yaml               # Threat → STRIDE mappings
│   ├── threats-cwe.yaml                  # Threat → CWE mappings
│   ├── threats-capec.yaml                # Threat → CAPEC mappings
│   ├── threats-mitre-attack.yaml         # Threat → ATT&CK mappings
│   ├── countermeasures-nist-csf.yaml     # Countermeasure → NIST CSF mappings
│   ├── countermeasures-owasp.yaml        # Countermeasure → OWASP mappings
│   ├── countermeasures-soc2.yaml         # Countermeasure → SOC 2 mappings
│   ├── countermeasures-asvs.yaml         # Countermeasure → ASVS mappings
│   └── countermeasures-cra.yaml          # Countermeasure → CRA mappings
└── dfd-templates/
    └── s3-lambda.yaml                     # Pre-built serverless DFD template

Anatomy walkthrough

pack.yaml defines the pack identity and dependencies:

pack:
  schema_version: 1
  slug: aws
  name: AWS
  version: 1.1.0
  pack_type: full
  description: |
    AWS pack covering core infrastructure and AI/ML services
    with associated threats and countermeasures.
  author: Precogly
  depends_on:
    - taxonomies/stride-taxonomy
    - taxonomies/capec
    - taxonomies/cwe
    - taxonomies/mitre-attack
  tags:
    - aws
    - cloud
    - serverless
    - technology
    - saas

Key points:

• schema_version declares the pack format version. Always use 1 (the current version). This is checked at import time — packs with an unsupported version are rejected.
• slug must be unique, lowercase, hyphens only.
• depends_on lists taxonomy packs (using path-format strings) whose entries the join files reference. Without these, taxonomy mappings won't resolve on import.

components.yaml defines the technology building blocks:

components:
  - id: s3
    name: Amazon S3
    category: datastore
    kind: data-store # optional: CycloneDX asset type, defaults from category
    type: Object Storage
    provider: aws
    description: |
      Amazon Simple Storage Service (S3) provides scalable object storage
      for data backup, archival, and analytics.

kind is the CycloneDX asset type the component exports as, such as device, service, api, gateway or data-store. If you leave it out, it comes from category: process gives process, datastore gives data-store, and the two actor categories give actor. Set it when the default is too vague (a field sensor should be device). A value outside the asset type list is a validation error.

threats.yaml defines what can go wrong:

threats:
  - id: s3-public-exposure
    name: S3 Bucket Public Exposure
    description: |
      S3 bucket is publicly accessible, exposing sensitive data
      to unauthorized users.

countermeasures.yaml defines security controls:

countermeasures:
  - id: s3-block-public-access
    name: S3 Block Public Access
    description: |
      Enable S3 Block Public Access settings at account and bucket level.
      Prevents accidental public exposure.
    control_functions:
      - preventive
    control_nature: technical
    cost: low

joins/components-threats.yaml can also say which flows a threat reaches and how severe it starts:

mappings:
  - component: plc
    threats:
      - threat: plc-logic-tampering
        applies_to: component
      - threat: ot-protocol-mitm
        applies_to: flow
        flow_types: [data, message, control] # list of flow types, or any
        severity: high                       # info | low | medium | high | critical

A flow link that leaves out flow_types applies to data-like flows only (data, message, event). It never reaches signal, energy, physical, control, process or financial flows. So any threat that should reach those flows must list them, or use any. flow_types is an error on a link with applies_to: component. severity defaults to medium.

dfd-templates/*.yaml hold pre-built diagrams. These keys carry the type information:

canvas_data:
  nodes:
    - id: tb-plant
      type: trustZone
      data:
        label: Plant Network
        zoneType: network # default trust
        trustLevel: 40    # optional, integer from 0 to 100
    - id: process-plc
      type: process
      parentId: tb-plant
      data:
        label: PLC
        kind: device      # optional, CycloneDX asset type
  edges:
    - id: edge-1
      source: process-plc
      target: process-valve
      type: dataFlow
      data:
        label: Valve command
        flowType: control             # default data
        authentication: [certificate] # a list of methods

• zoneType: one of availability, compliance, data, deployment, functional, geographic, logical, network, organizational, physical, process, tenant, trust.
• trustLevel: an integer from 0 (untrusted) to 100 (most trusted).
• flowType: one of control, data, energy, event, financial, message, physical, process, signal.
• boundaryType on trustBoundary edges: one of data, functional, network, organizational, physical, process, trust.
• authentication: always a list. Name the real method (oidc, mtls, jwt, certificate and so on). Use unspecified only when the flow is authenticated and the method is unknown. An empty list means not recorded.

Retired keys. The boolean authenticated on edges is no longer read, and the old zone values zoneInternet, zoneDmz, zoneInternal, zoneRestricted and zoneExternal are not zone types. A template that still uses them fails validation and the import is refused. The pack format version stays 1.

Join files wire everything together. See libraries/README.md for the full join file reference.

Design rationale

The aws pack demonstrates several important patterns:

• Threat-per-component granularity: Each threat targets a specific component (e.g., s3-public-exposure for S3) rather than being generic. This ensures threats are actionable.
• Cross-component countermeasure sharing: A countermeasure like lambda-input-validation can appear in multiple threat mappings, so one control can be linked to several threats and scoped to a zone or boundary (see Platform Controls).
• Platform countermeasures: Some controls use default_status: platform to indicate infrastructure-level controls managed by the security team. See Platform Controls.
• Multiple taxonomy mappings: Each threat maps to STRIDE, CWE, CAPEC, and ATT&CK, giving users rich classification data.

Content ratios

As a guideline, aim for these ratios per component:

• 3-5 threats per component
• 1-3 countermeasures per threat
• At least STRIDE mapping for every threat (CWE, CAPEC, ATT&CK are valuable additions)

---

Prompting an LLM

LLMs are effective at generating structured threat-modeling YAML. The key is giving them the right context.

Prompt template

Use this as a starting point, adapting it to your pack:

I'm creating a library pack for Precogly, an open-source threat modeling platform.
The pack covers [TECHNOLOGY/DOMAIN].

Generate the following YAML files for a [pack_type] pack:
- pack.yaml (slug: [your-slug], pack_type: [type])
- components.yaml with [N] components
- threats.yaml with 3-5 threats per component
- countermeasures.yaml with countermeasures for each threat
- joins/components-threats.yaml
- joins/threats-countermeasures.yaml
- joins/threats-stride.yaml

Use these conventions:
- All IDs: lowercase with hyphens (e.g., "s3-public-exposure")
- Threat descriptions: explain what the threat is and how it occurs
- Countermeasure descriptions: explain what the control does and how it helps
- control_functions: list of preventive, detective, corrective, deterrent, recovery, compensating
- control_nature: technical, administrative, or physical
- cost: low, medium, or high
- applies_to in component-threat joins: "component", "flow", or "both"
- flow_types on flow or both links: a list of control, data, energy, event, financial, message, physical, process, signal (or "any"). Never on a "component" link. Without it, a link reaches data, message and event flows only
- severity on a component-threat link (optional): info, low, medium, high, or critical
- kind on components (optional): a CycloneDX asset type such as device, service, api, gateway, or data-store
- In DFD templates: zoneType on trustZone nodes is a CycloneDX zone type (use "trust" or "network", never zoneRestricted or other zone* values); trustLevel is an integer 0 to 100; flowType on edges is one of the flow types above; authentication on edges is a list of methods (never the boolean "authenticated")

Reference this example from the aws pack for structure:
[paste a sample from aws]

Example prompts

Technology pack (components only):

Create a technology library pack for Google Cloud Platform covering:
Compute Engine, Cloud Storage, Cloud SQL, Cloud Functions, and Pub/Sub.

Generate pack.yaml and components.yaml only. Use pack_type: technology,
slug: gcp-core, provider: gcp.

Full pack:

Create a full library pack for Kubernetes covering:
Pod, Service, Ingress, ConfigMap, and Secret.

Generate all files including threats, countermeasures, and STRIDE mappings.
Use pack_type: full, slug: kubernetes-core.
Include 3-5 threats per component and appropriate countermeasures.

Tips for better results

• Provide the aws files as context. The more examples the LLM sees, the more consistent its output.
• Generate one file at a time if the pack is large. Start with components, then threats, then countermeasures, then joins.
• Ask for specific threat categories. For example: "Include at least one data exposure threat and one injection threat for each component."
• Specify the taxonomy entries. If you want STRIDE mappings, list the valid STRIDE categories: spoofing, tampering, repudiation, information-disclosure, denial-of-service, elevation-of-privilege.

---

Reviewing LLM output

LLM-generated content needs careful human review. Check each area:

Accuracy

• Component descriptions match the actual technology (not hallucinated features)
• Threats are real, documented vulnerabilities for that technology
• Countermeasures are actual security controls that exist and work as described
• Taxonomy mappings use correct entry IDs (e.g., valid CWE numbers, correct STRIDE categories)

Completeness

• Every component has at least 3 threats mapped in components-threats.yaml
• Every threat has at least 1 countermeasure in threats-countermeasures.yaml
• Every threat has a STRIDE mapping in threats-stride.yaml
• No orphan items (threats without component mappings, countermeasures without threat mappings)

Consistency

• All IDs follow the lowercase-hyphen pattern
• IDs referenced in join files match IDs defined in their respective files
• No duplicate IDs within any file
• control_functions and control_nature values use only allowed values
• cost values use only allowed values
• applies_to uses only component, flow, or both
• flow_types uses only flow types or any, and is never set on an applies_to: component link
• Flow threats that should reach signal, control, energy or other non-data flows say so with flow_types
• severity uses only info, low, medium, high, or critical
• Component kind (and template node kind) is a CycloneDX asset type
• Template zoneType, flowType and boundaryType values come from the lists above, and no zoneRestricted style values remain
• Template trustLevel is an integer from 0 to 100
• Template edges use authentication lists, never the retired authenticated; unspecified only where the method is unknown

Quality

• Descriptions are specific, not generic boilerplate
• Threats describe the attack vector, not just the impact
• Countermeasures explain how to implement the control, not just what it prevents
• No unnecessary duplication between threats or countermeasures

---

Validating and testing locally

Automatic validation on import

Validation runs automatically when you click Import in the UI. If your pack has structural issues (wrong key names, invalid enum values, missing fields), you will see a dialog listing each problem with a suggested fix. Errors block import and must be fixed. Warnings pause the import for review; if they are acceptable, click Import Anyway to continue.

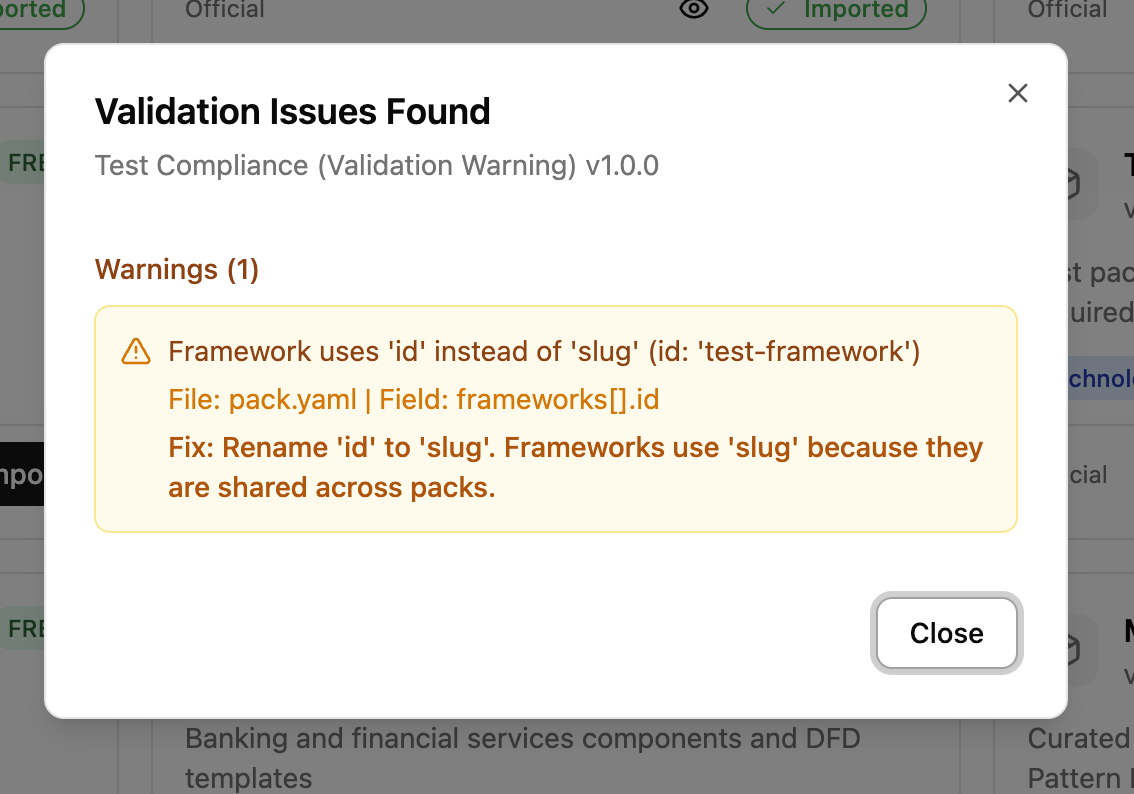

Warnings identify issues that would cause data loss (e.g., using id instead of slug for frameworks):

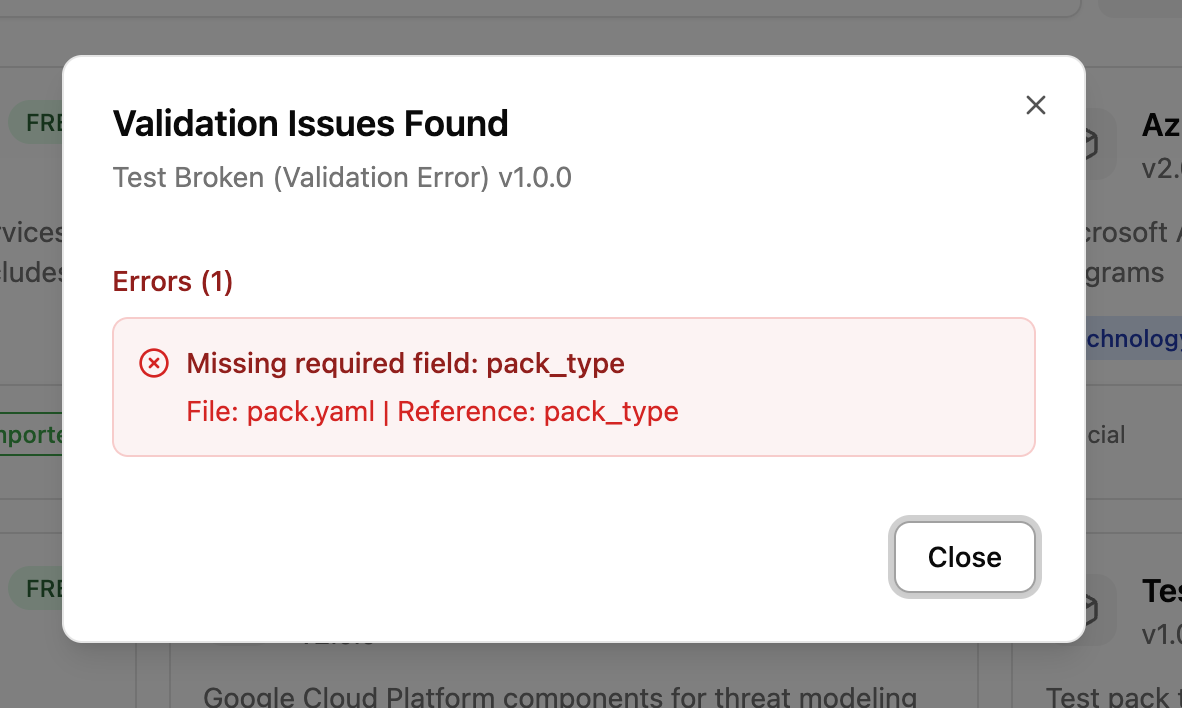

Errors identify missing required fields or structural problems:

Validate via API

You can also validate explicitly using the API endpoint:

POST /api/packs/validate/
{"slug": "your-pack-slug"}

This endpoint requires Security Team role. It checks structural issues (metadata, enums, key names) and reference issues (broken joins, missing components).

Common validation issues

Issue	Message	Fix
Framework uses id instead of slug	"Framework uses 'id' instead of 'slug'"	Rename id: to slug: in the frameworks section of pack.yaml
Taxonomy uses id instead of slug	"Taxonomy uses 'id' instead of 'slug'"	Rename id: to slug: in taxonomy.yaml
Invalid control_functions	"Unknown control function"	Use preventive, detective, corrective, deterrent, recovery, or compensating
Invalid control_nature	"Unknown control_nature"	Use technical, administrative, or physical
Invalid cost	"Unknown cost"	Use low, medium, or high
Invalid category	"Unknown category" (error)	Use process, datastore, external_human_actor, or external_system_actor
Invalid component kind	"unknown kind" (error)	Use a CycloneDX asset type such as device, service, api, gateway or data-store, or remove kind
Invalid applies_to in a join	"applies_to ... is not one of" (error)	Use component, flow, or both
Invalid flow_types in a join	"flow_types ... are not flow types" (error)	Use control, data, energy, event, financial, message, physical, process, signal, or any
flow_types on a component link	"flow_types is set on an entry with applies_to: component" (error)	Change applies_to to flow or both, or remove flow_types
Invalid severity in a join	"severity ... is not one of" (error)	Use info, low, medium, high, or critical
Legacy or unknown template zoneType	"zoneType ... is not a zone type" (error)	Use a CycloneDX zone type. Replace zoneRestricted, zoneInternal, zoneDmz, zoneInternet and zoneExternal with trust or network
trustLevel out of range	"trustLevel ... must be 0 to 100" (error)	Use an integer from 0 to 100
Invalid template node kind	"kind ... is not a CycloneDX asset type" (error)	Use a CycloneDX asset type
Invalid edge flowType	"flowType ... is not a flow type" (error)	Use one of the nine flow types
Invalid edge boundaryType	"boundaryType ... is not a boundary type" (error)	Use data, functional, network, organizational, physical, process, or trust
Retired authenticated on an edge	"'authenticated' is retired; use authentication" (error)	Replace authenticated: true with the real method, for example authentication: [oidc], and delete authenticated: false
authentication is not a list	"authentication must be a list of methods" (error)	Write it as a list, for example [mtls]
none beside other methods	"authentication cannot combine 'none' with other values" (error)	Use [none] alone, or list only the real methods
Missing pack_type	"Missing required field: pack_type"	Add pack_type to the pack: section
Missing schema_version	"Missing schema_version field"	Add schema_version: 1 to the pack: section
Unsupported schema_version	"Unsupported schema_version: N"	Use schema_version: 1 (the only currently supported version)
Missing component id	"Component at index N has no 'id' field"	Add id: to the component entry

Import and verify in the UI

1. Place your pack directory under libraries/packs/.
2. Start the development server (see Development Setup).
3. Navigate to Library Packs in the sidebar.
4. Find your pack in the catalog and click to preview it.
5. Verify:
   • Components appear with correct names, categories, and descriptions
   • Threats show with their taxonomy tags (STRIDE, CWE, etc.)
   • Countermeasures show with correct control functions, control nature, and cost levels
   • Compliance mappings appear if you included them
6. Click Import. Validation runs automatically. Fix any reported issues.
7. Verify the pack imports successfully (success toast appears).
8. Create a test threat model, add a component from your pack, and confirm threats and countermeasures propagate correctly.

---

Submission guidelines

Pull request expectations

• One pack per PR.
• Include a brief description of what the pack covers and why it's useful.
• List the components, number of threats, and number of countermeasures in the PR description.

Required fields

Your pack.yaml must include:

pack:
  schema_version: 1              # pack format version (always 1)
  slug: your-pack-slug          # unique, lowercase, hyphens only
  name: Your Pack Name
  version: 1.0.0                # start at 1.0.0 for new packs
  pack_type: full               # or technology, threat, etc.
  description: |
    Clear description of what this pack covers.
  author: Your Name             # or your GitHub username
  tags:
    - relevant
    - tags

Versioning

Follow semantic versioning:

• Patch (1.0.1): Fix descriptions, correct taxonomy mappings
• Minor (1.1.0): Add new components, threats, or countermeasures
• Major (2.0.0): Remove or rename existing IDs (breaking change)

License

All contributed packs are subject to the project's license. By submitting a pack, you agree that your contribution can be distributed under the same terms.

---

Quality standards

Minimum thresholds

Criterion	Minimum
Components	At least 3 per technology pack
Threats per component	At least 3
Countermeasures per threat	At least 1
STRIDE mappings	Required for every threat
Descriptions	At least 1 sentence each
IDs	Must match ^[a-z0-9]+(-[a-z0-9]+)*$

PR review checklist

Reviewers will check:

• pack.yaml has all required fields
• All IDs are unique within their file and follow naming conventions
• All join file references resolve to existing IDs
• Threats are accurate and specific to the technology
• Countermeasures are real, implementable controls
• Taxonomy mappings use correct entry IDs
• No sensitive or proprietary information is included
• Pack imports successfully and renders correctly in the UI
• Version starts at 1.0.0 for new packs
